30" Single Row Light Bar (Dual Wattage) by Lightforce
The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package
R 13,995.00
Sold out
CODE: 30XP
- Description
- Specification
- What's in the box?
FEATURES
- Extruded aluminium body with black anodized coating
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
Includes Wiring Harness
| Light Bar Style | Single Row |
|---|---|
| Bar Length | 30 Inch |
| Globe Type | LED |
| Distance: 1 lux at | 600m |
| Distance: 0.25 lux at | 1200m |
| Effective Lumens | 5342 |
| Raw Lumens | 10,688 |
| Colour Temperature | 5000K |
| Current Draw | 9.7Amps @ 13.2V |
| Voltage Range | 12V - 36V |
| Wattage | 118W |
| Ingress Protection Rating | IP69K |
| Beam Pattern | Driving (Dual Wattage) |
| Weight | 3kg |

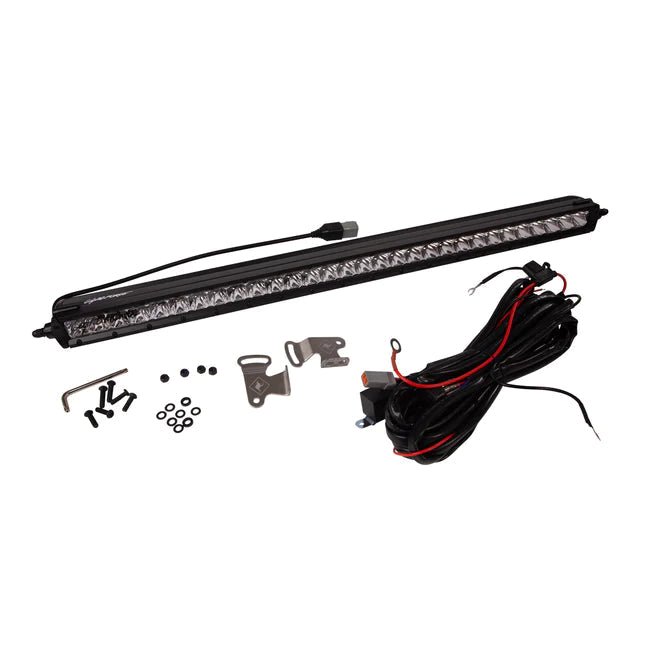

- 1 x Lightforce Single Row LED Bar
- 1 x Full wiring harness (including relay and switch connector)
- 2 x Stainless steel brackets and hardware
- 1 x User instructions
