50mm Lift Kit (Pack 2) EV1L50 Series for Suzuki Jimny Gen 4 by Des Sol

The Des Sol EV1L50 Pack 2 is a complete 50mm suspension lift for the Suzuki Jimny Gen 4, built around Des Sol's locally designed and manufactured EV1L50 remote-reservoir shock absorbers and matched dual-rate coil springs. It gives your Jimny a more planted, controlled ride on the tar while handling corrugations, loaded touring and technical trails with ease.

Everything needed to support the extra ride height is included in the kit, from castor correction bushes and extended hoses through to a headlight-level sensor relocation bracket, so the lift goes in properly the first time. Available for both the 3 door and 5 door Jimny.

Features

• Approximately 50mm suspension lift

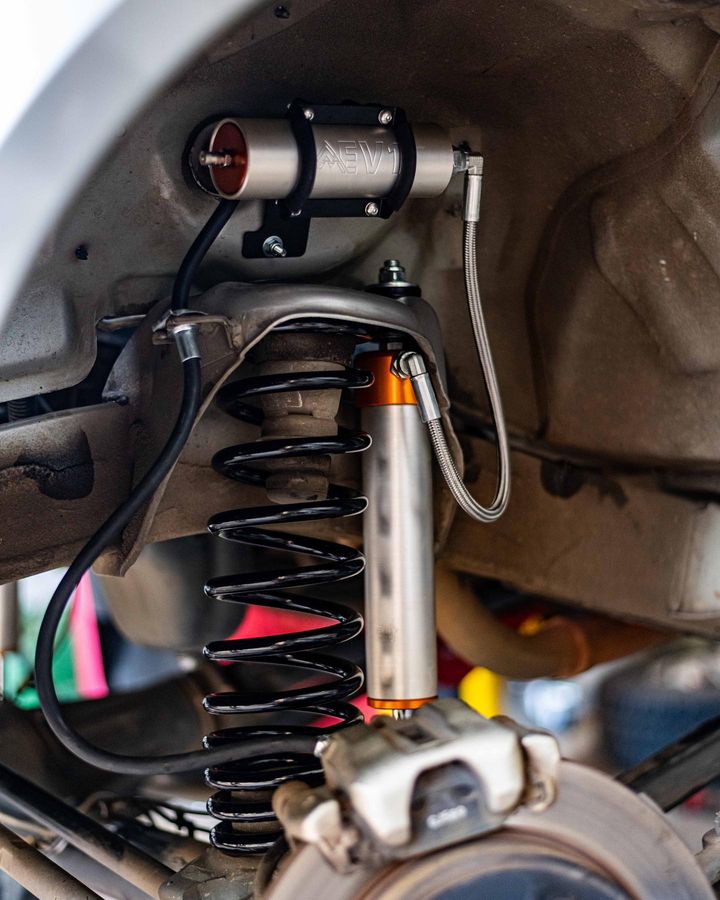

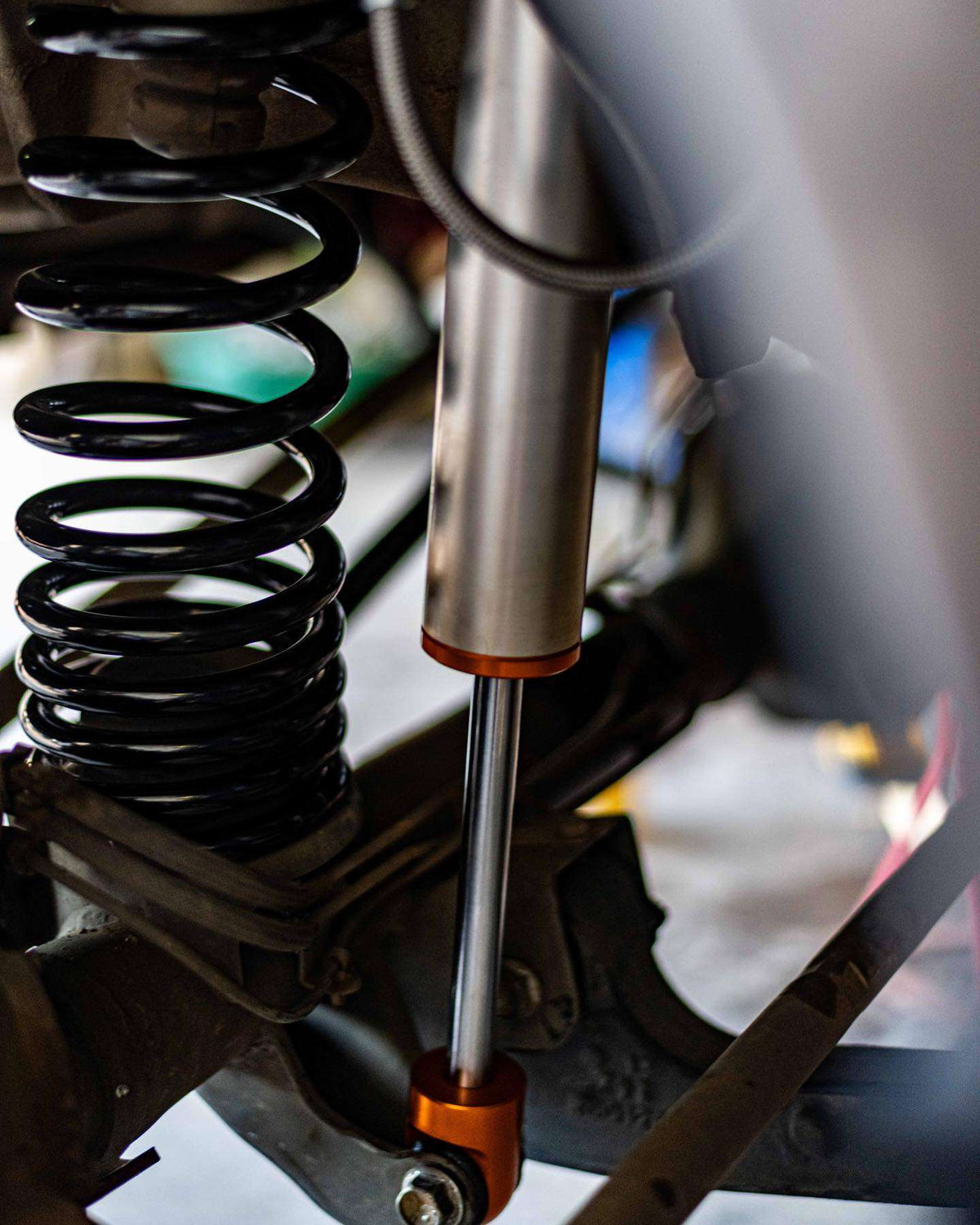

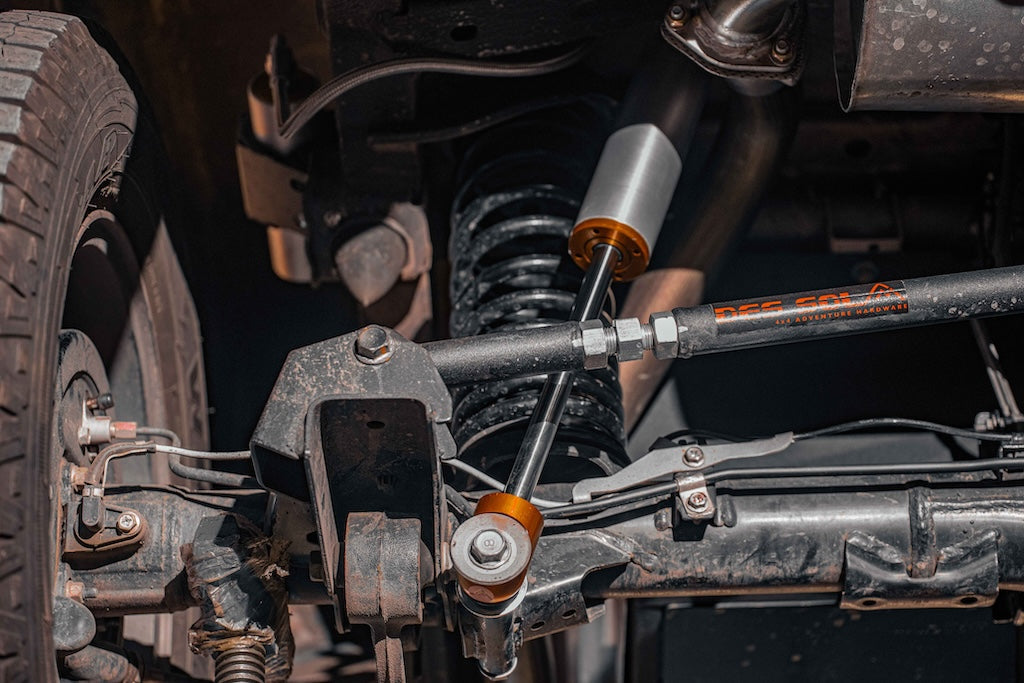

• Large-bore monotube EV1L50 shocks with remote reservoirs
• 44.5mm piston and high oil volume to reduce shock fade
• Hard-anodised aluminium shock bodies
• Dual-rate coil springs for both loaded and unloaded driving
• Rebuildable, serviceable and re-valvable to suit your build

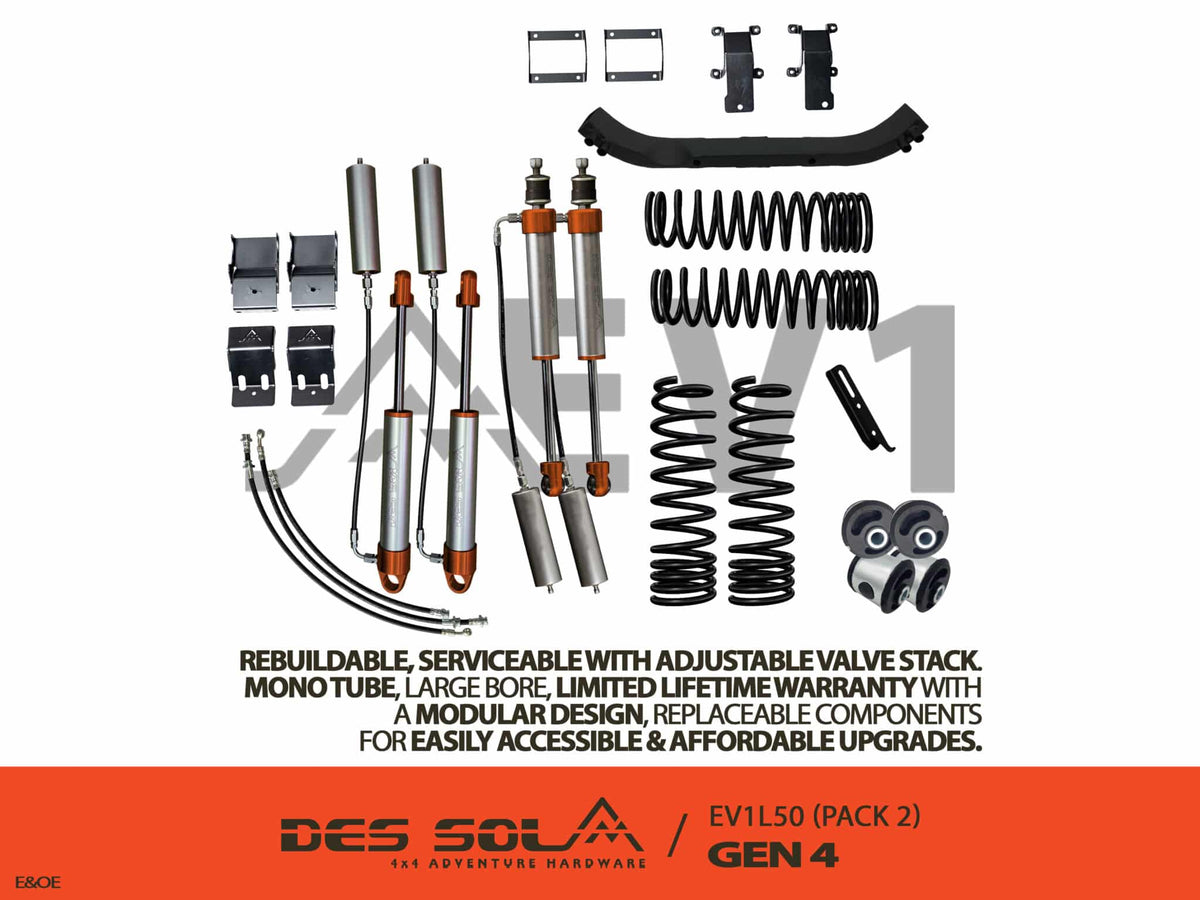

Kit Contents

• 4 x EV1L50 remote-reservoir shock absorbers
• 4 x Dual-rate coil springs

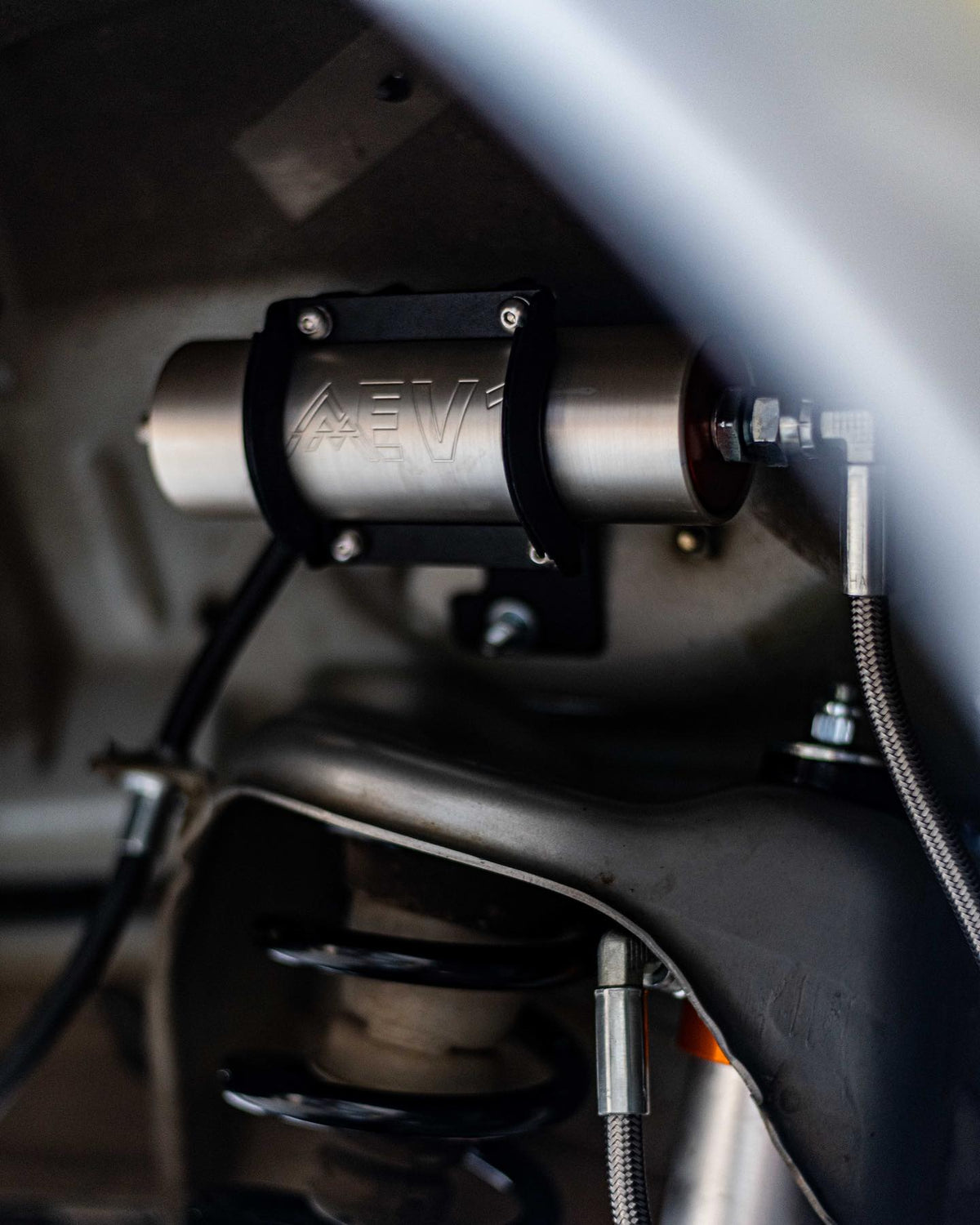

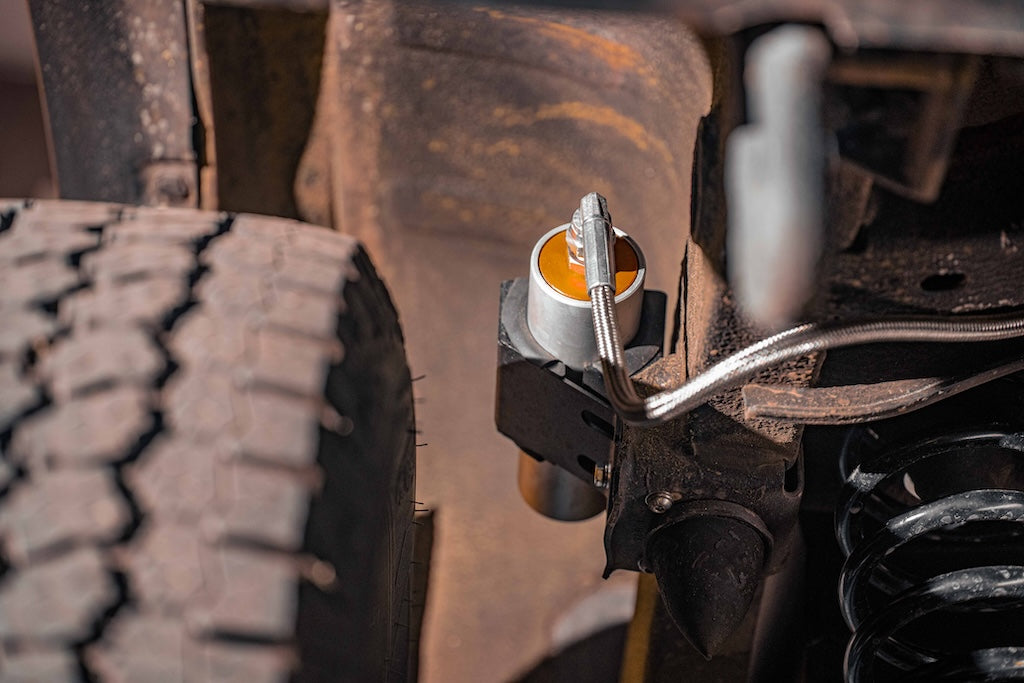

• Reservoir mounting brackets
• Castor correction bushes
• Extended brake hoses
• Extended vacuum hoses
• Headlight-level sensor relocation bracket

Warranty

EV1 series shock absorbers carry Des Sol's 8-year limited lifetime warranty, provided they are serviced every 4 years or 80,000 km (whichever comes first) at a Des Sol nominated service centre. Professional fitment and a wheel alignment are recommended.
